Pro Taper SE ATV Mid bars installed on 2006 Suzuki DL650 Vstrom .

"SE" stands for seven-eigths - meaning that the bars will fit in the factory riser without adapter.

As recommended by others, I cut off 1/2" from each bar end.  I also sanded some material off the top half of the bar clamps so that they would not make contact with the bottom half when tightened down all the way.  The best trick for removing the left hand grip  is to use an air chuck.   The bars are still a long reach, and can only be titled back so far before they hit the cowling near the gas tank when at full turn.  The ATV High bars might allow for more tilt.

Pro Taper SE ATV mid bars on DL650

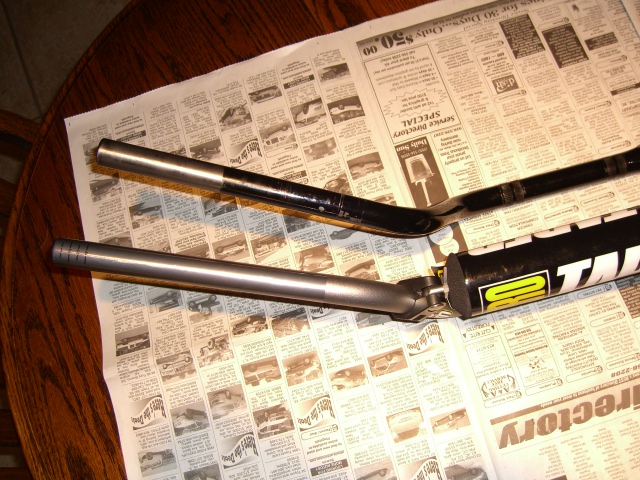

Pro Taper SE ATV mid bars compared to factory bars

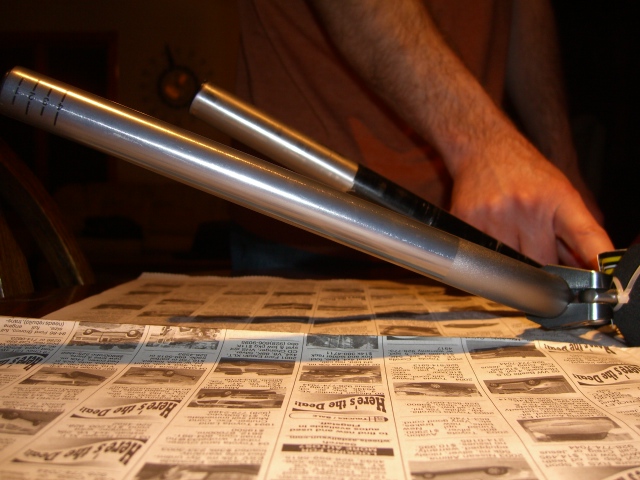

Pro Taper SE ATV mid bars compared to factory bars

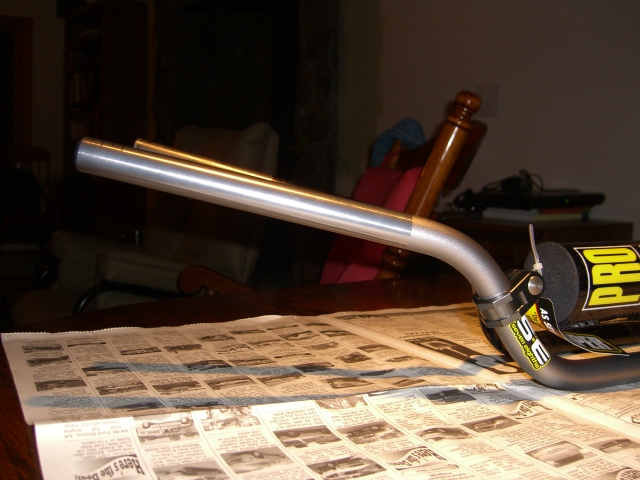

Pro Taper SE ATV mid bars compared to factory bars

Pro Taper SE ATV Mid handlebars compared to factory bars.
